AIR COMPRESSOR
SCISSORS LIFT

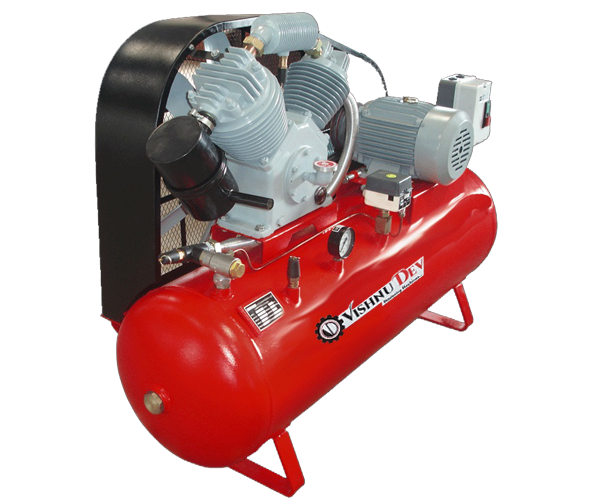

3HP Air Compressor
Technical Specifications
Model No. : SDS03
No of Cylinders
Displacement
Free Air Delivery
: 2 Nos
: 313 LPM ; 11.06 CFM
: 245 LPM ; 8.65 CFM
Working Pressure
Power Required
Compressor Speed
Tank Capacity
: 12.5 Kg/sq.cm (or) 175 psi
: 3 HP (or) 2.2 KW
: 950 rpm
: 160 & 250 liters

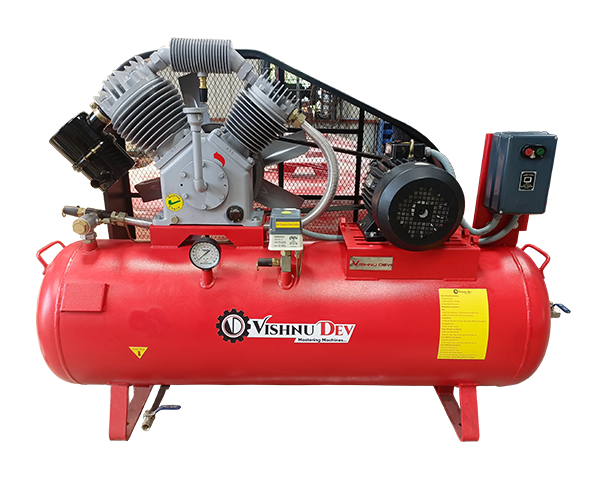

5HP Air Compressor
Technical Specifications
Model No. : SDS05
No of Cylinders
Displacement
Free Air Delivery
: 2 Nos
: 504 LPM ; 17.81 CFM
: 394 LPM ; 13.92 CFM
Working Pressure
Power Required
Compressor Speed
Tank Capacity
: 12.5 Kg/sq.cm (or) 175 psi
: 5 HP (or) 3.7 KW
: 750 rpm
: 250 liters

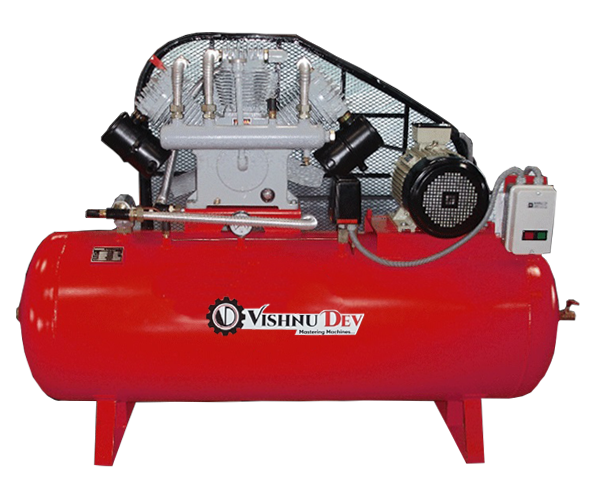

10HP Air Compressor
Technical Specifications
Model No. : SDS10
No of Cylinders
Displacement
Free Air Delivery
: 3 Nos
: 1008 LPM ; 35.62 CFM
: 835 LPM ; 29.50 CFM
Working Pressure
Power Required
Compressor Speed
Tank Capacity
: 12.5 Kg/sq.cm (or) 175 psi
: 10 HP (or) 7.5 KW
: 750 rpm
: 420 liters

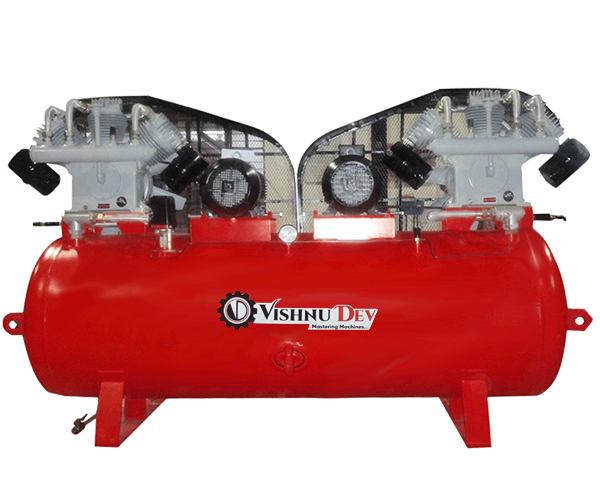

15HP Air Compressor
Technical Specifications
Model No. : SDS15
No of Cylinders
Displacement
Free Air Delivery
: 3 Nos
: 1535 LPM ; 54.24 CFM
: 1229 LPM ; 43.42CFM
Working Pressure
Power Required
Compressor Speed
Tank Capacity
: 12.5 Kg/sq.cm (or) 175 psi
: 15 HP (or) 11.2 KW
: 1150 rpm
: 150 liters
